The complete guide
How to Choose a Handheld Endoscope Camera (Buyer's Guide)
The problem with not being able to see
Almost every repair job has a moment where progress stops because something is hidden. A rattle behind the dashboard. A damp smell coming from a wall with no visible leak. A drain that backs up every few weeks with no obvious cause. A dropped nut that fell somewhere into the engine bay and now rules out starting the car.
The usual answers are all bad. You cut a hole and hope. You pull apart something that was working fine. You call someone out and pay for an hour of their time so they can tell you what is wrong before they fix it. Or you guess, order parts, and find out you guessed wrong.

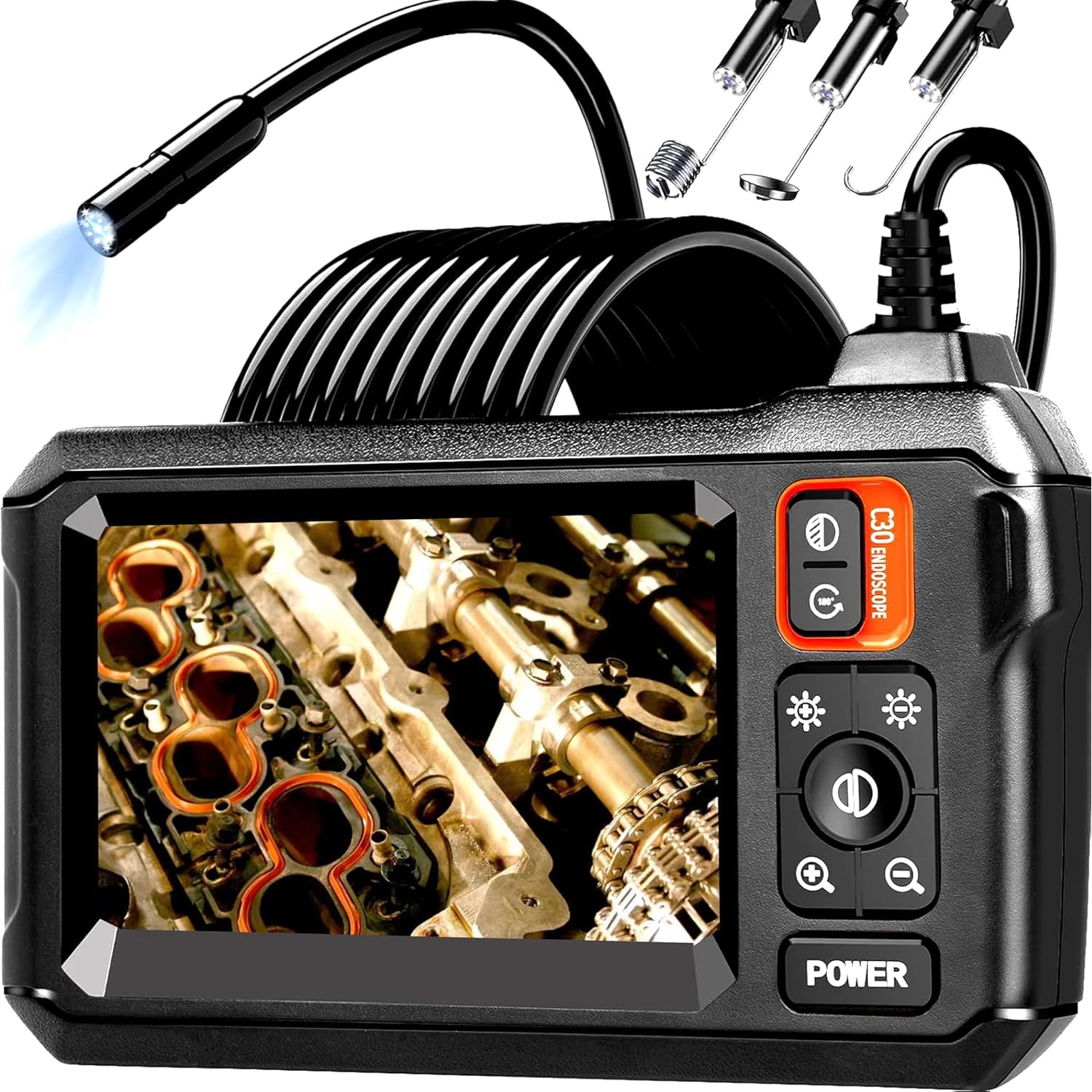

An endoscope camera with 4.3 inch screen removes the guessing. You push an 8 mm camera into the space, look at the live picture, and now you know. That is the whole pitch. Everything else about the tool exists to make that one job faster and less annoying.
How a borescope actually works

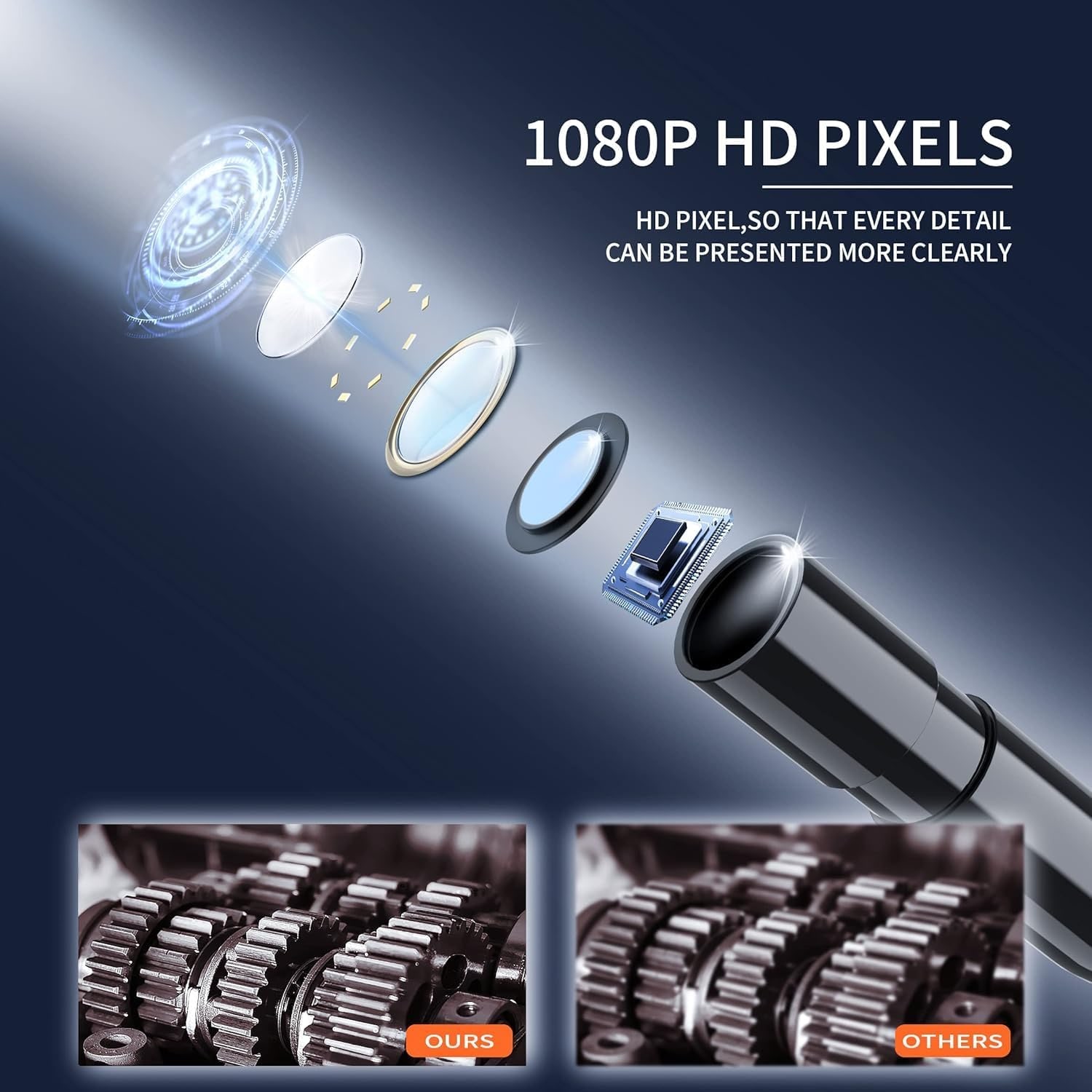

The camera head sits at the end of a cable. It carries a small CMOS sensor, a fixed lens, and a ring of LED lights, because no space worth inspecting has any light in it. On this model the maker describes a 1080P HD camera with a 120 degree angle of view.
The picture travels back up the cable to the handheld unit. Here is where models split into two camps. Wi-Fi borescopes send the feed to your phone. Screen models show it on their own display. This one is the second kind, and in practice that matters a lot more than the spec sheet suggests.
With a Wi-Fi model you power up, find the hotspot, join it, open the app, wait for the feed, and sometimes lose the connection halfway through. You also have your phone out in a place full of oil, dust or water. With a screen on the handle you press one button and look. There is no pairing and no app. If you only use an inspection tool occasionally, the screen version is the one you will actually reach for.
The camera works at close range. The maker gives the best observation distance as 1.5 in to 5 in from the lens. That sounds short until you remember that inside a pipe or a cylinder, the wall is only ever a couple of inches away. The specifications give no zoom, although the handset in the photos has magnifier buttons the maker does not describe, so you frame your view mainly by moving the probe.
Light is half the picture
People shopping for their first borescope compare resolution figures and ignore lighting. That is backwards. A 1080p sensor in the dark gives you a 1080p picture of nothing.

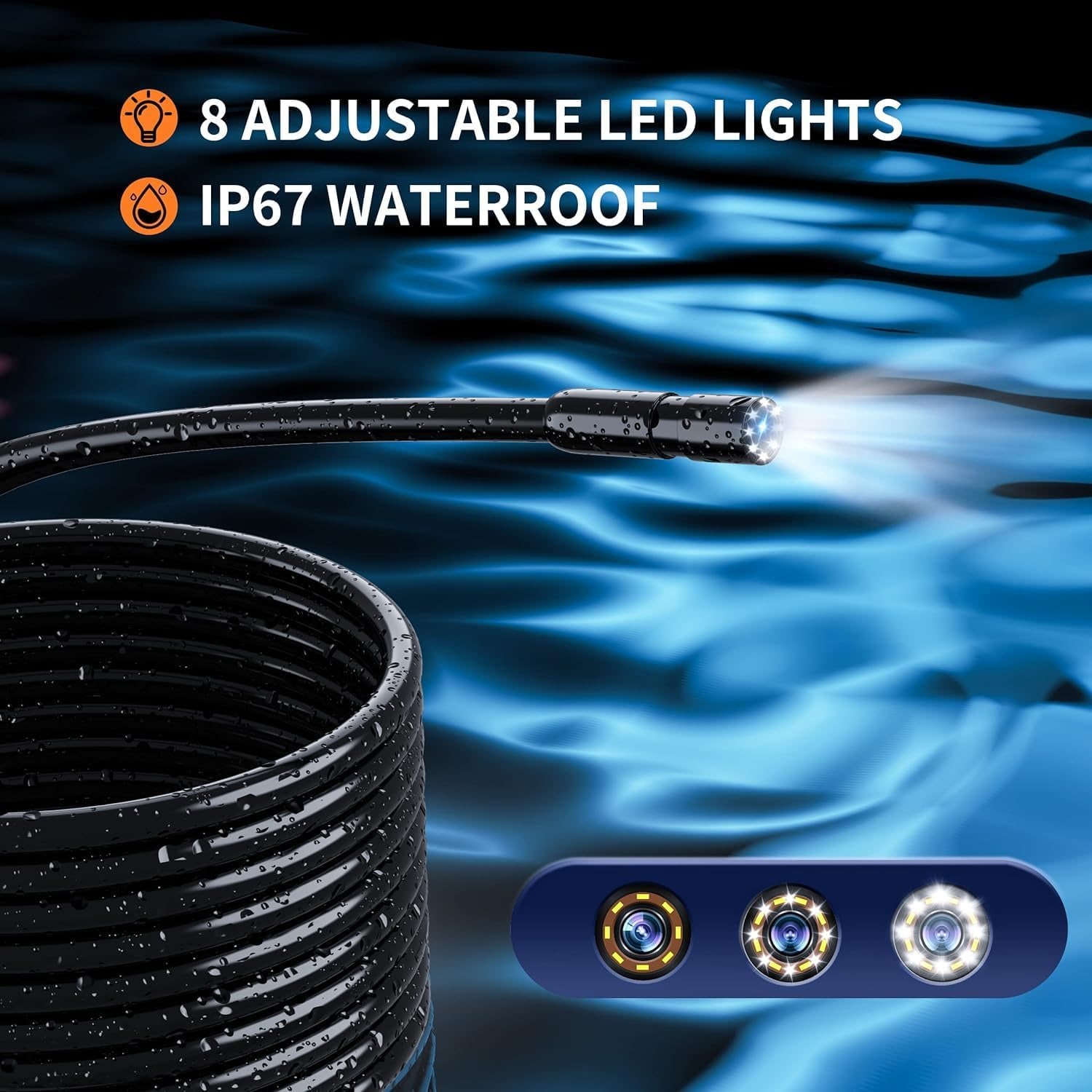

Eight LEDs sit around this camera head and the brightness is adjustable. Being able to turn them down is not a minor feature. Point full brightness at a wet chrome pipe or a polished cylinder wall and the reflection blows out the center of the frame, hiding the crack you are hunting for. Dial the light back and detail returns. Inside a dusty duct or a dark cavity, you want everything the LEDs can give.
Get into the habit of adjusting the light each time you move into a new material. Metal needs less, insulation and masonry need more.
Cable, probe and getting into awkward places
Cable length on this model is 16.5 ft and the probe is 8 mm across. Those two numbers decide most of what you can and cannot inspect.
The 8 mm diameter is a sensible general-purpose size. It fits through a standard spark plug hole, through a small hole drilled in drywall, down most household drains and through vent slots. Thinner probes exist for very tight work, but they generally carry smaller sensors and weaker lights, so you trade picture quality for access.
Cable stiffness is the part buyers underestimate. A fully flexible cable will not push. Feed two feet of it into a duct and it bunches up instead of advancing. A fully rigid cable goes in straight and then refuses to turn a corner. Semi-rigid is the compromise, and it is the right one for general work. You bend a small hook into the last few inches, push, and the cable both holds that shape and transmits your push forward. When you need it straight again, you straighten it.
The maker rates the borescope IP67 waterproof and says the probe uses an aerospace connector that can be used in pools, plumbing and the rain. That means drains, standing water, flooded cavities and rain are all fine for the business end. Treat the handheld part with the screen like any other piece of electronics.

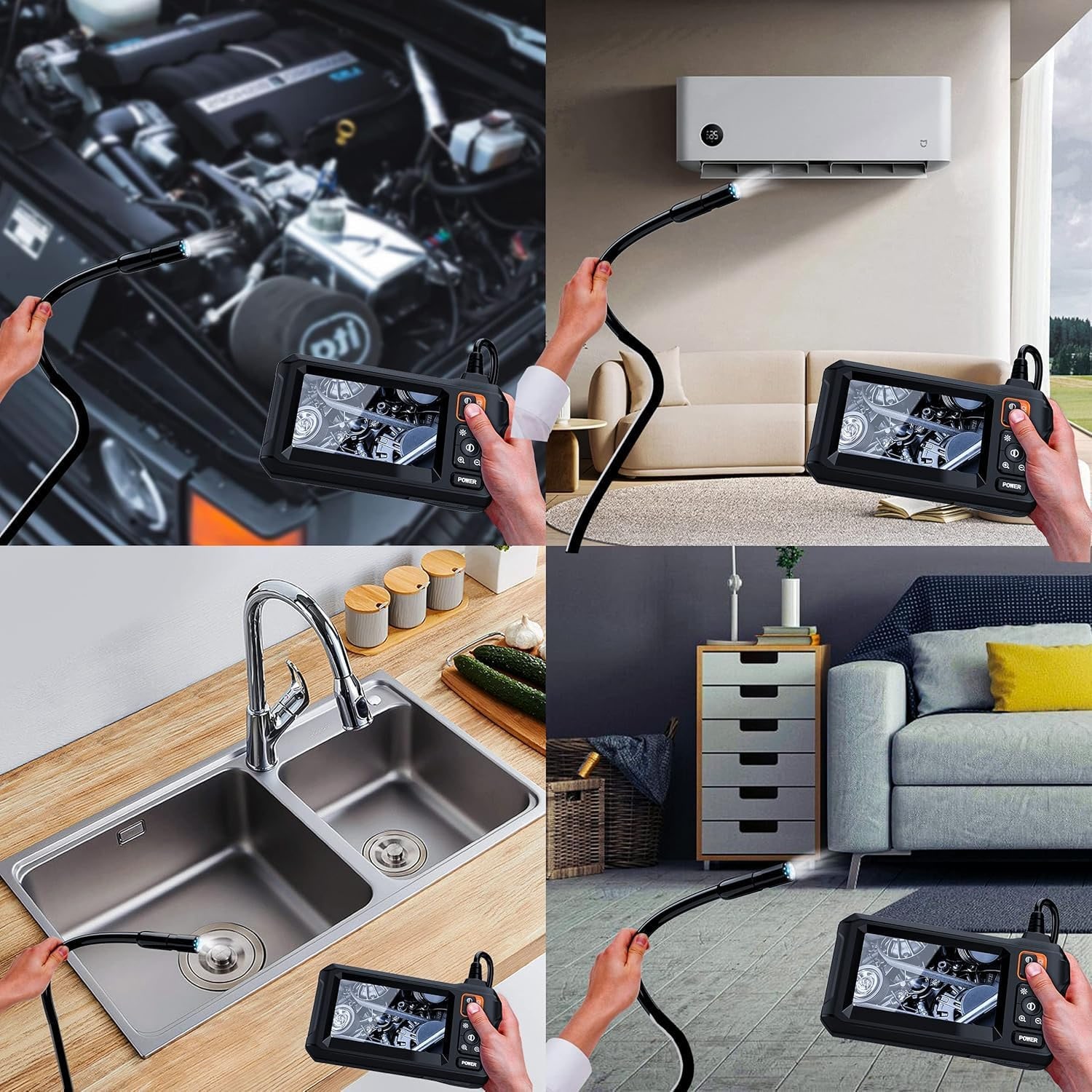

Who gets the most out of one
Mechanics use them more than anyone. Dropping a camera through a spark plug hole to check the combustion chamber, piston crown and valves tells you in two minutes what a compression test only hints at. Behind that, finding dropped fasteners, checking for coolant seepage and inspecting the back of a timing cover.
Plumbers and drain specialists use them to find blockages, root intrusion and cracks before deciding whether to jet, rod or dig. Knowing where the problem sits saves hours.
Electricians and HVAC technicians use them for cavity runs and duct checks. Property inspectors and landlords use them to look inside walls and under floors for damp and pests without opening anything up.
Then there is the large group of people who just fix their own stuff. Blocked washing machine. Something that fell behind the kitchen cabinets. A mystery draft. A DIY inspection scope gets used far more often than people expect once it is in the house.
Choosing yours
Start with cable length. Shorter cables are easier to handle and store, longer ones reach further down a drain or along a duct. The 16.5 ft here is a practical middle length that covers most domestic and automotive work without being unwieldy.

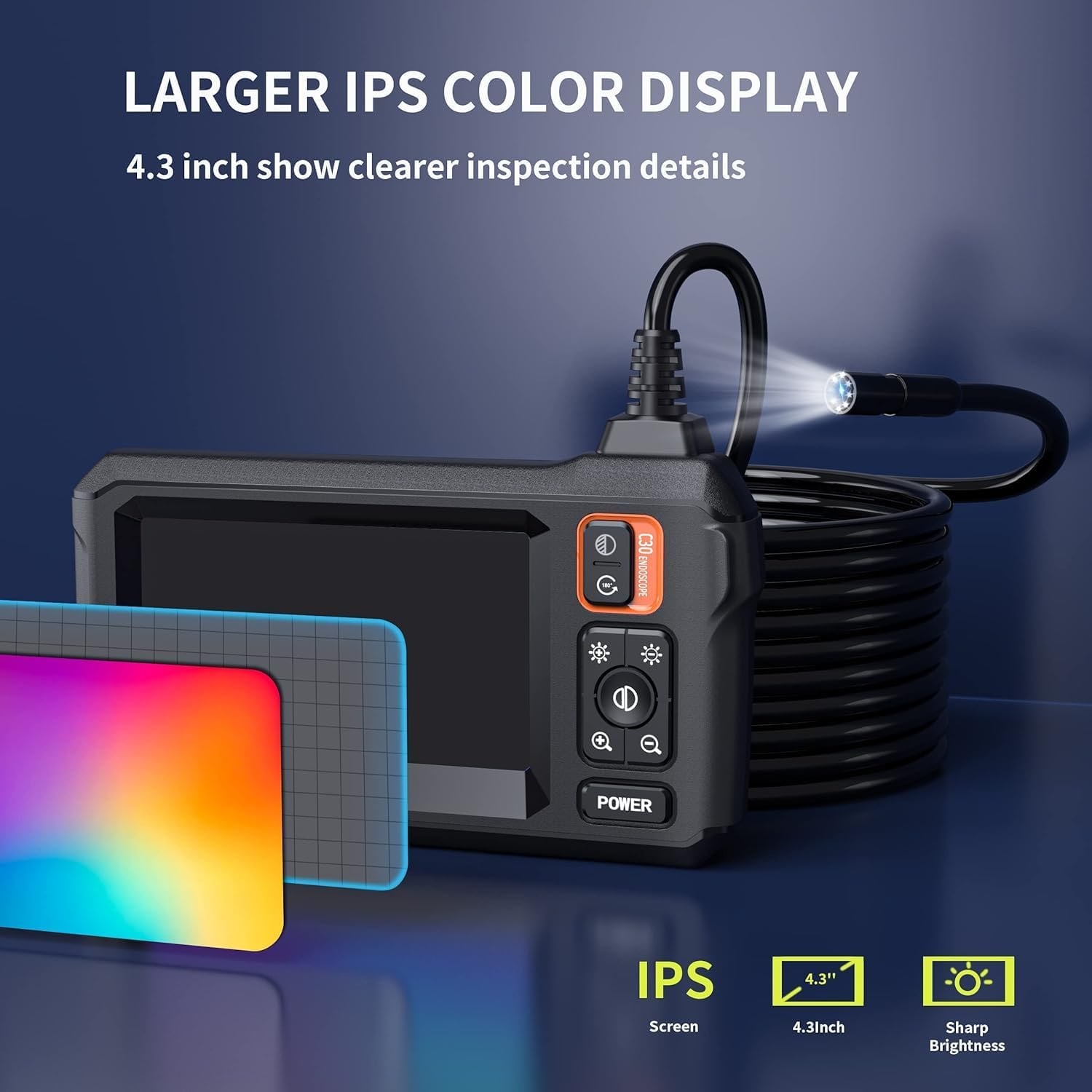

Then think about the screen. If you want the fastest possible start-up, a screen on the handle wins. If you want to share the view with someone standing next to you on a larger display, a phone-based model has an edge.
Check recording. The maker's description of this unit carries a note that the endoscope cannot take pictures, even though its specifications list SD card media and JPEG and MP4 formats. If you need saved stills or video to show a client, attach to a quote, or send to a landlord, this is not the tool to rely on for that.

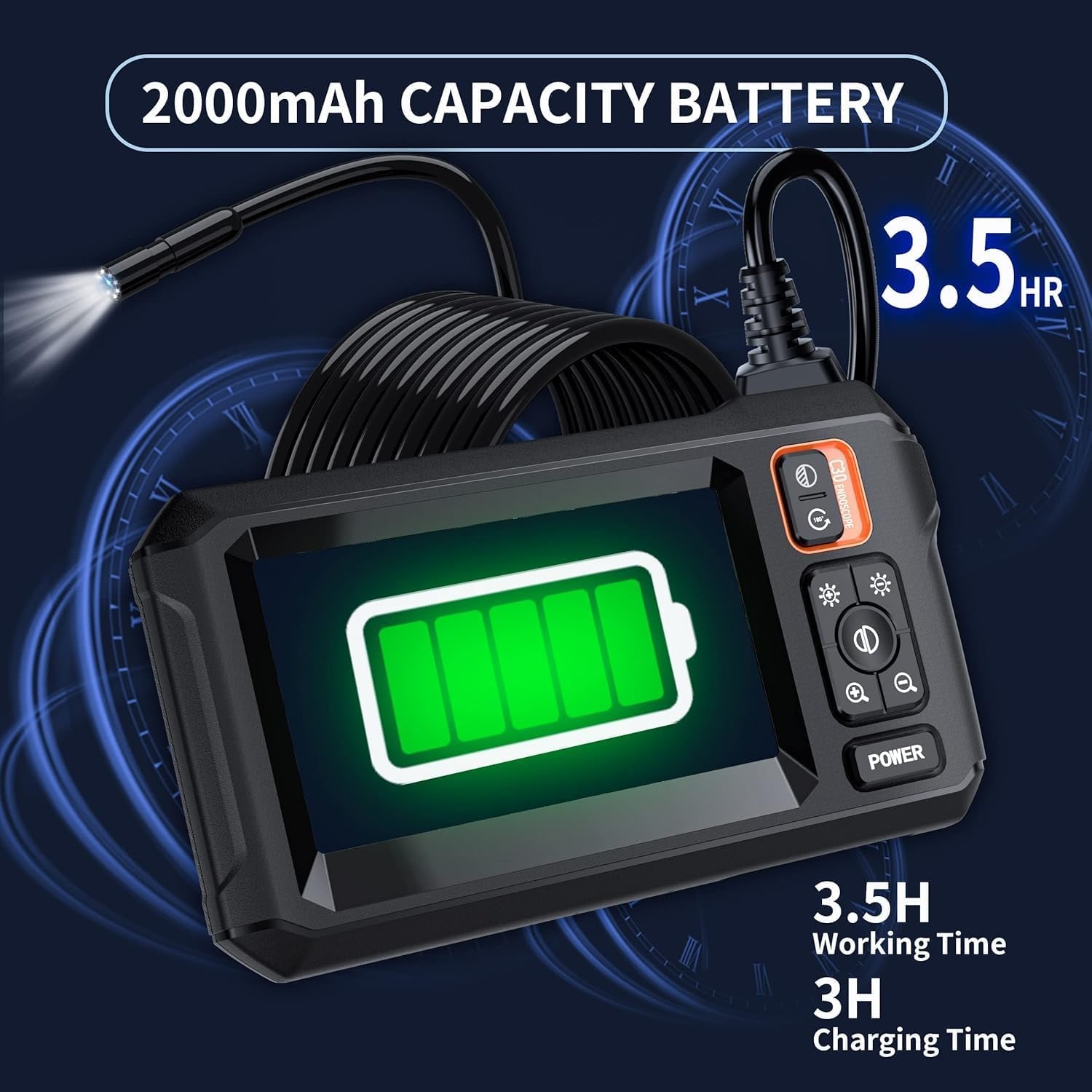

Battery life is given as 3.5 hours. For a tool used in short bursts that is plenty. One thing to take seriously: charge it with a normal 5V 1A household charger and do not use a fast charger. The maker says fast charging is not supported, to prevent the battery overheating.
Finally, think about what you will store it in. The semi-rigid cable lasts longest when it is coiled in wide loops. Tight coils eventually produce kinks, and a kinked cable is harder to steer.
Looking after it
Clean the probe after every dirty job and dry it fully before coiling. A damp cloth is enough. Keep solvents away from the lens window, since they can cloud it over time.
Keep the handle dry. The maker's waterproof statement is about the probe end. If you have been working in water, let the cable drain and dry before it goes back in the bag.
Charge it occasionally if it sits unused for months, since letting a rechargeable battery sit fully empty for long stretches shortens its life.
The short version
If you need to see inside something, this does the job with very little ceremony. Press the button, the 4.3 inch screen lights up, the eight LEDs come on, and you feed an 8 mm probe down 16.5 ft of semi-rigid cable into whatever is hiding the problem. It is a live viewing tool (the maker notes it cannot take pictures), the probe is IP67 waterproof, and the battery runs about 3.5 hours.
It will not replace a professional drain survey rig or a medical scope. For car work, plumbing, walls, ducting and general household repairs, it answers the question you actually have, which is simply "what is going on in there".
